Alienspecs Chassis Geometry Methodology
Racing Specs &
Chassis Tuning Detail.
Deep dive into our proprietary Alienspecs chassis setup methodologies, including corner balancing on scale pads and precision bump steer correction.
Corner Balancing & Bump Steer Elimination
How we eliminate unexpected chassis roll and unequal corner loads during track sessions.
Corner Weighting & Cross-Weight Balance

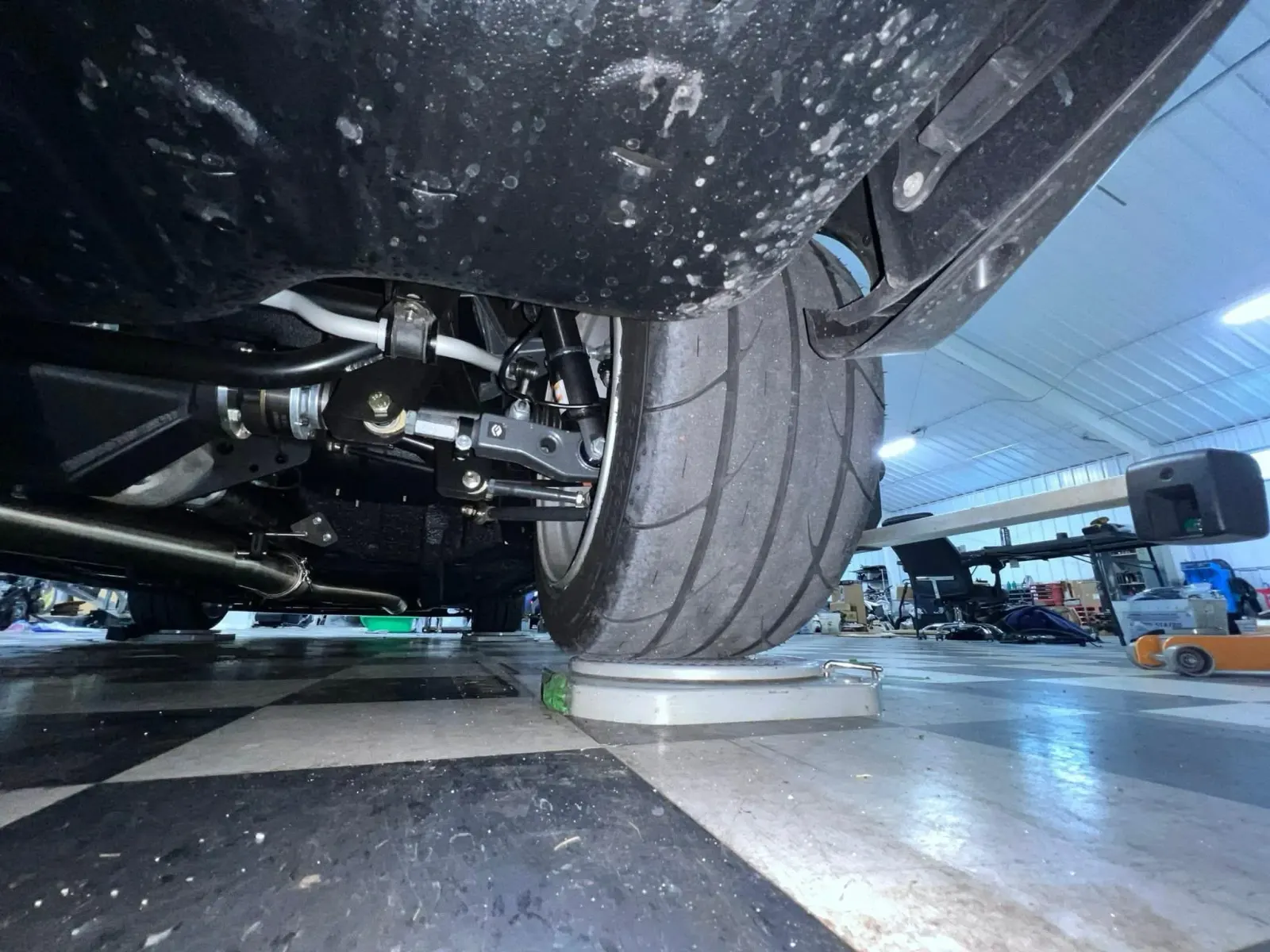

We set each corner of the car on individual digital scale pads (rated up to 1,500 lbs per wheel) and adjust ride height and spring perch position until cross-weight is balanced. An uneven cross-weight makes a car turn differently left versus right, which shows up as inconsistent lap times through symmetric corners.
Bump Steer Correction
Lowering a car changes the geometry of the steering linkage, which can cause the wheels to steer themselves as the suspension compresses over bumps or under braking. We check tie rod angle against the control arm through the suspension's full range of travel and correct it with spacers or relocated tie rod ends before we touch camber or toe.
Alienspecs Precision Alignment Specs & Calibration Tolerances
Engineered adjustment ranges and measurement specs for track, drag, and drift setups.
| Setup Parameter | Adjustment Range / Capacity | Operational Target |
|---|---|---|
| Camber Range | +2.0° to -5.5° Precision Adjustment | Maximizes cornering contact patch |
| Toe Angle Resolution | ±0.01° Laser Measurement | Eliminates high-speed scrub & wandering |
| Scale Pad Rating | Up to 1,500 lbs per wheel scale pad | Digital 50/50 cross-weight balancing |
| Launch 60-Foot Telemetry | Thrust Angle & Squat Geometry Correction | Eliminates wheel hop via thrust angle correction |
Trusted Across 1,500+ Mobile Wheel Alignments
Professional Mobile Alignment, Done Right at Your Location.
0+
Alignments Completed
—
Verified Google Rating
0%
Mobile Service
Helps Reduce Uneven Tire Wear
Alignment Confidence Promise
We stand behind the quality of our alignment service. If we're unable to properly complete the alignment due to an issue within our service or equipment, we'll make it right. Vehicle condition, damaged or worn components, seized adjustments, aftermarket modifications, and unsuitable service surfaces may affect results and are not considered service failures.
Trackside & Garage Dispatch
Book your slot with our mobile laser alignment team. We bring scale pads and computerized alignment directly to your garage or trackside pit area.
